view(view.jsp.jet) - Generate the query page

Introduce

Generate the query page.

Related knowledge:

Task

• Configure

Model

• Model Structure

Tag

• entity
• set
• get
• for
• if
• elseif
• else

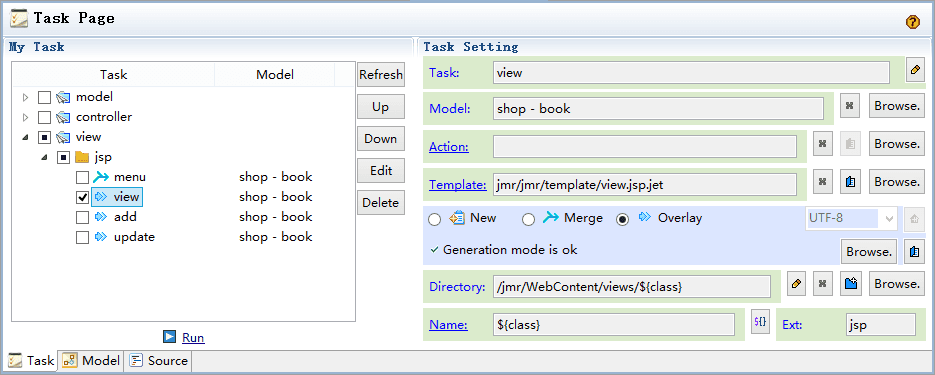

Task And Model

• Model Group: shop
• Model: book

The model group of the current task is shop,
which contain a Java entity model book,
and the relation value of book is one;

More about the model structure of this demo, please click: Demo model structure

There are 2 ways to select the model:

• Select Model Group(Such as shop): <entity> tag need select the relation. This way is used in template, which require multiple models, such as many-to-one, many-to-many.

• Select Model(Such as book)(This demo): <entity> tag no need to select the relation. This way is used in template, which require only one model. Of course, you can also select relation together.

• Template: view.jsp.jet

We have created the following properties for this model:
Class: A head uppercase property,
       which can be used as the class name or a part that need head uppercase.
       It's value is "Book".
class: A lowercase property,
       which can be used as a part that need lowercase.
       It's value is "book".
menu: The name of the menu bar, and it's value is "Book".

• Directory: /jmr/WebContent/views/${class}

• Name: ${class}

• Ext: The extension is jsp

Initialization

• Entity tag set the new variable object to get the selected model.
• Set the variable Class as the head uppercase part, get it by object.property("Class").
• Set the variable class as the lowercase part, get it by object.property("class").

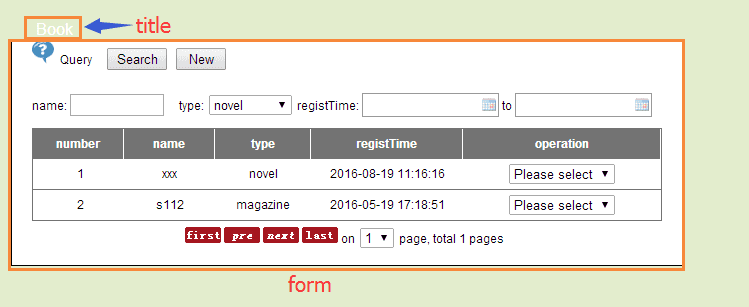

title and form

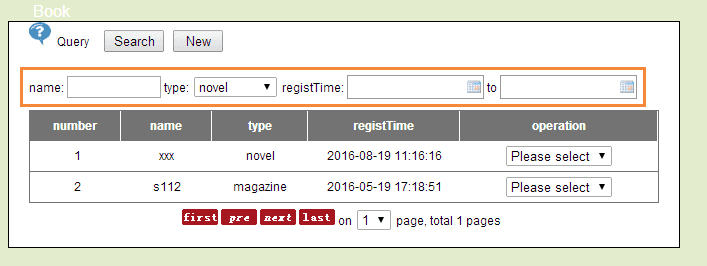

Result

Query

logic:
--If the field is the query field, iterate over the field.
for field : object.fields object.isQuery
  --Output field name
  field.name
  --If the control is text
  if field.controlType == text
    --Output input control
    <input ...>
  --If the control is select
  elseif field.controlType == select
    --Output select control
    <select ...>
      --The data of the field
      for data : field.datas
      --The value of the option is data.value, and the name of the option is data.name
      <option value="data.value"/>data.name</option>
    </select ...>
  --If the control is date
  elseif field.controlType == date
    --Output start date control
    <input class="Wdate"...>
    to
    --Output end date control
    <input class="Wdate"...>

description above:

• If the field is the query field, iterate over the field.
• Output field name

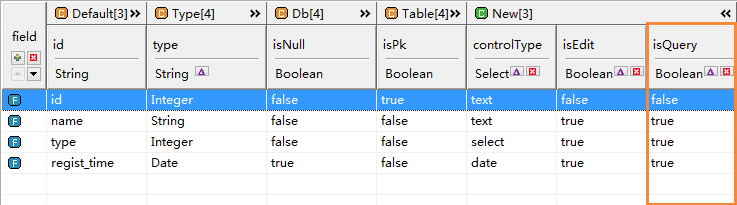

field.property("isQuery") == true, isQuery is used to determine whether the field is queried.

• If the control is text
• Output input control

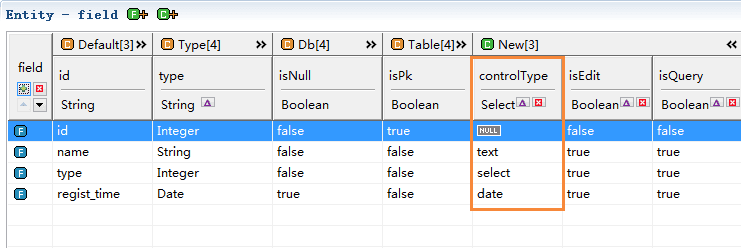

You can see controlType for different fields

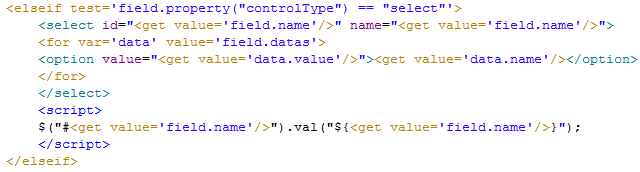

• If the control is select
• Output select control
• Iterate over the field datas
• The value of the option is data.value, and the name of the option is data.name

The data settings for the type field are as follows:

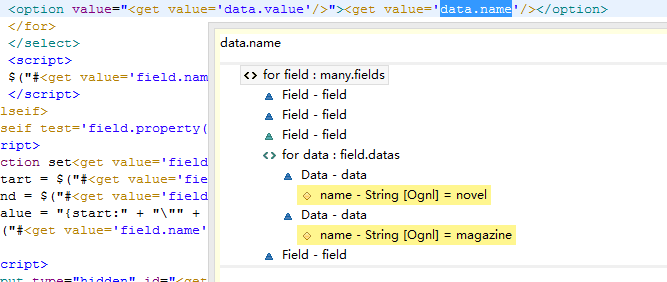

Select data.name, and we can see the value

Assign select a value

• If the control is date
• Output start date control
• Output end date control

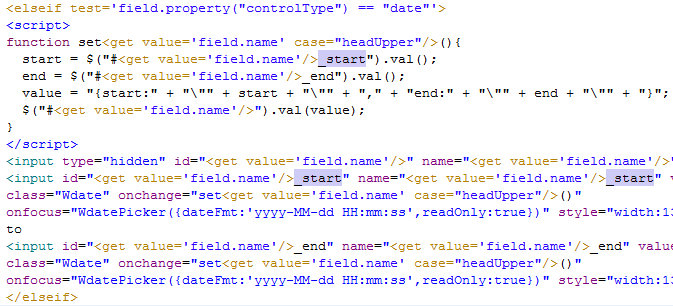

The way to query dates is to use the json array:
<input name="[name]" value="{[name]_start: start date, [name]_end: end date}"/>
When date control is selected, the method call set[Name]{}, set the json array input.

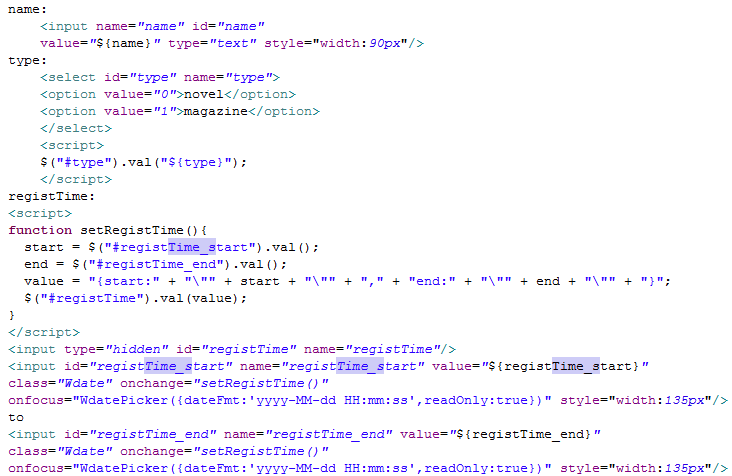

Result

Query list

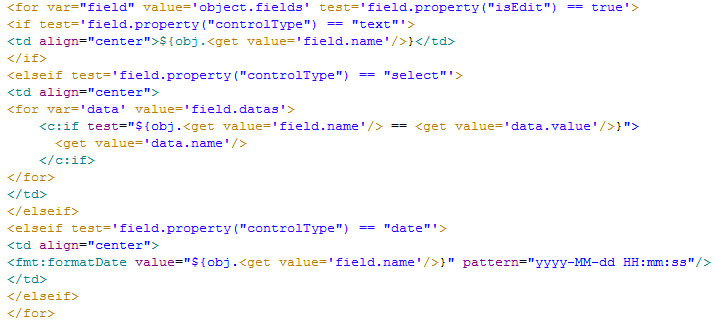

logic:
--If the field is the edit field, iterate over the field.
for field : object.fields object.isEdit
  --If the control is text
  if field.controlType == text
    --Output field value
    <td>field value<td/>
  --If the control is select
  elseif field.controlType == select
    --The data of the field
    for data : field.datas

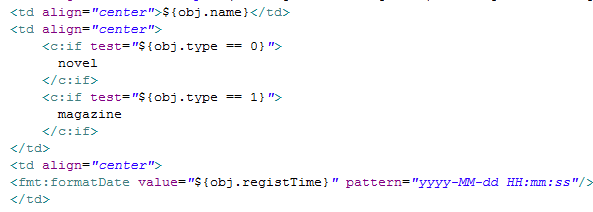

      --output jsp tag <c:if>
      --output data.name
      <td>data.name<td/>
  --If the control is date
  elseif field.controlType == date
    --Output date
    <td>date value<td/>

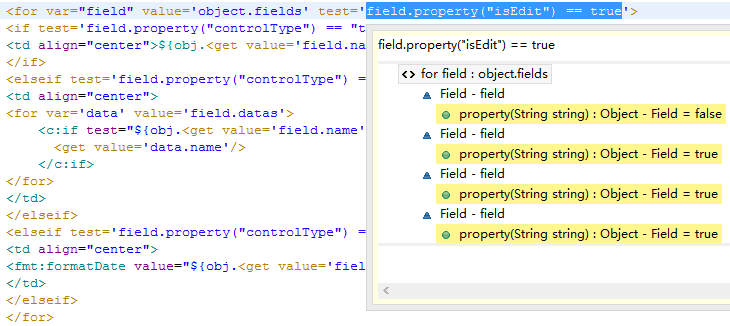

field.property("isEdit") == true whether the field is editable, editable fields need to be displayed in the list, and id as the primary key is not displayed in the list.

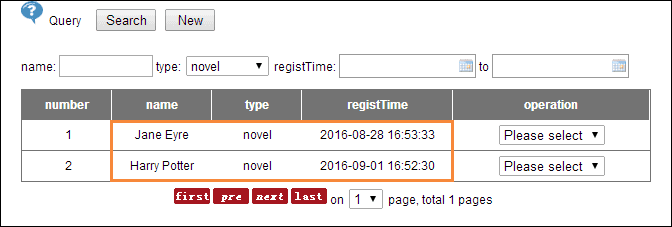

Result
