Mapping And Convert

Catalog:

• Mapping
• Mapping Config
• Using mapping in the model
• Using mapping in init scheme
• Convert
• Convert Config
• Using convert in the model
  • Property Convert
  • Field Convert
• Using convert in init scheme

Mapping

We know that the type of database is different from the type of development language, so we need a bridge, one side is the database type, and the other is the development language type

There is a big difference between the types of SQL supported by different databases, such as DECIMAL in Oracle, Mysql is not, Mysql varchar type corresponds to Oracle is varchar2. Most databases have their own type rules.

Fortunately, the major database vendors are providing their own database jdbc driver, it will follow the jdbc standard, Convert your SQL type to the corresponding jdbc type, which is derived from java.sql.Types.

The following are all types:

ARRAY, BIGINT, BINARY, BIT, BLOB, BOOLEAN, CHAR, CLOB,
DATALINK, DATE, DECIMAL, DISTINCT, DOUBLE, FLOAT,
INTEGER, JAVA_OBJECT, LONGNVARCHAR, LONGVARBINARY, LONGVARCHAR,
NCHAR, NCLOB, NULL, NUMERIC, NVARCHAR,
OTHER, REAL, REF, ROWID, SMALLINT, SQLXML, STRUCT,
TIME, TIMESTAMP, TINYINT, VARBINARY, VARCHAR

Jmr uses the jdbc type as a standard for mapping reasons:

1. Unified standards do not need to be concerned with different database types,
   and all types have correspondence in the jdbc type.
2. Just set the corresponding development language mapping type for the jdbc type.

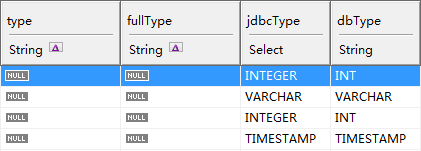

The following is a table in the database, and we can see the types of its different fields.

JdbcType is the jdbc type, and Jmr is converted to the following:

• jdbcType is the type obtained by the jdbc standard, and the uniform standard is the mapping type we need.
• dbType is the type of the database, and it is also obtained by the jdbc standard, but each database has its own type rules.
• type and fullType are the types that we need to map to the development language, type is a short type, such as String, Date; fullType is a full type, such as java.lang.String, java.util.Date.

Mapping Config

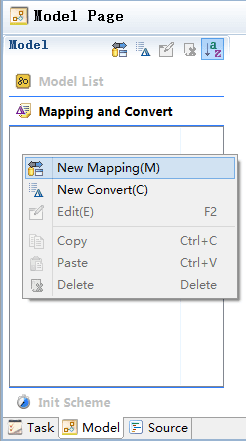

Click Model page --> Select Mapping and Convert --> New Mapping

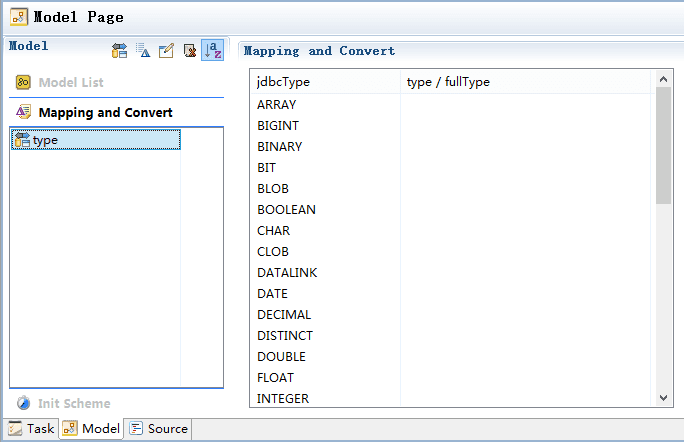

Named type, which is used as a mapping name; double clicking on the right side of the table allows you to fill the mapping type.

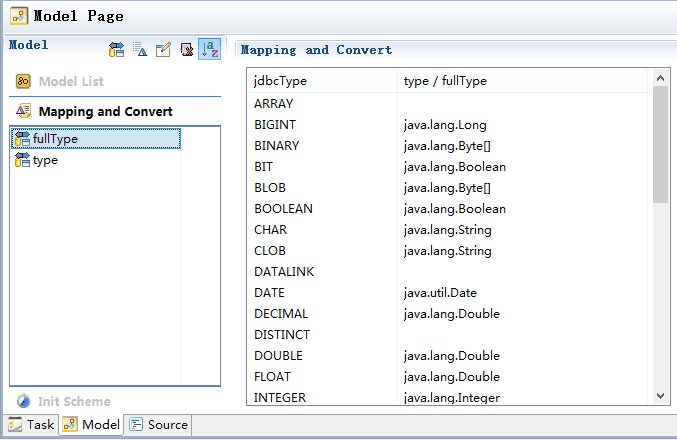

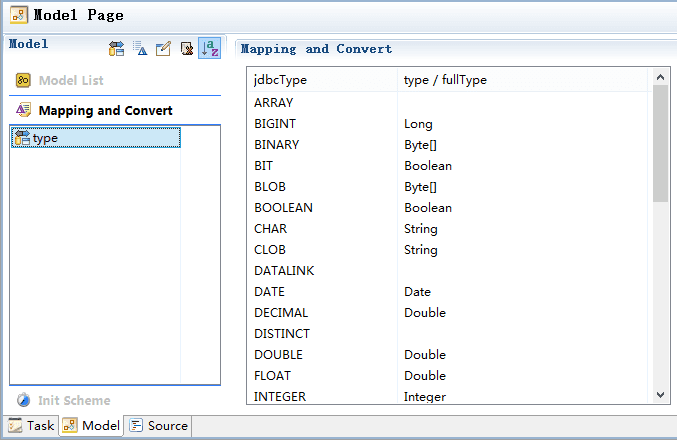

Fill in the type of jdbcType corresponding to your own requirements (this use the Java language as an example and you can use other languages)

Another new mapping, named fullType, is used to mapping the fullType.

Tip: when editing type, you can use the right button, from left to right:
* Search type button: you can search for the types included in your project,
  only Java type are supported.
* Open type button: you can open the type corresponding to the source code,
  only Java type are supported.
* Delete button: delete the type you have entered.

Using mapping in the model

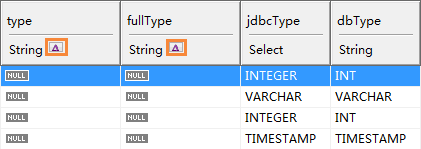

When we configure the mapping, we can use the configured mappings in the model. Click on the icons on model type and fullType.

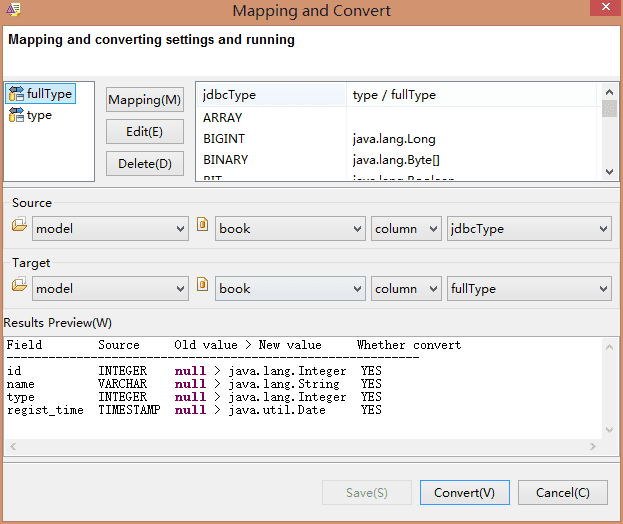

In fullType, for example, we choose the mapping to fullType; click convert, which generates the type based on the value of the jdbcType.

As a result of the convert, you can see that type and fullType have been mapped to complete.

Using mapping in init scheme

You can complete the mapping in the process of model transform.

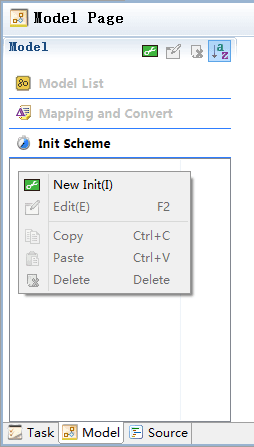

Click Model page-->Select Init Scheme-->New Init

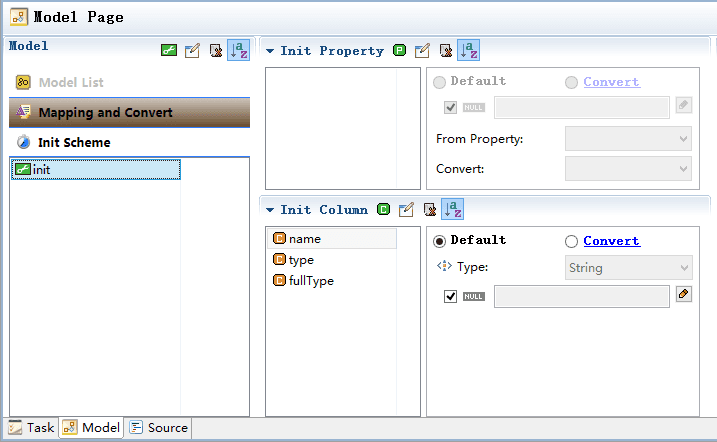

Named init, the init scheme comes with three fields called name, type, and jdbcType.

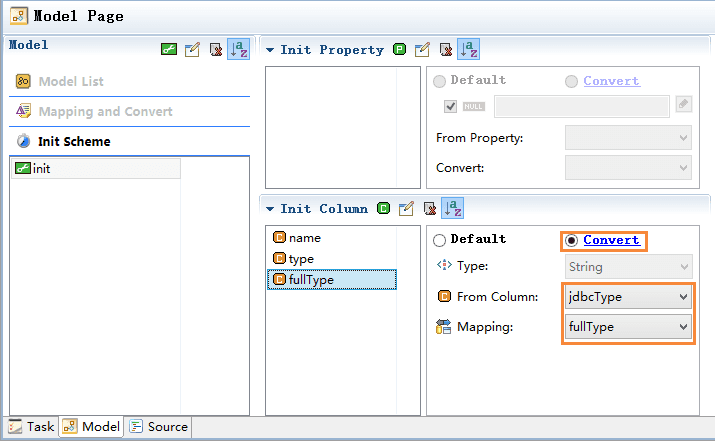

Select type and fullType-->Convert-->From Column: jdbcType, The mapping select type and fullType.

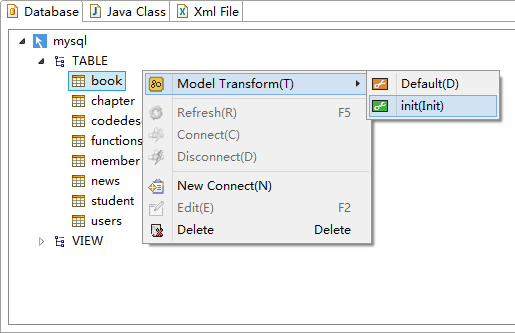

When the model transform, select init

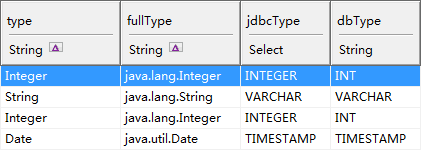

Transform result:

Convert

The transform use the Jmr Convert, for example:

• table name: book_order - > BookOrder
• table field: regist_time - > registTime

Convert Config

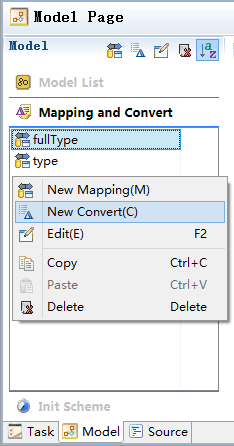

Click Model page-->Select Mapping and Convert-->New Convert

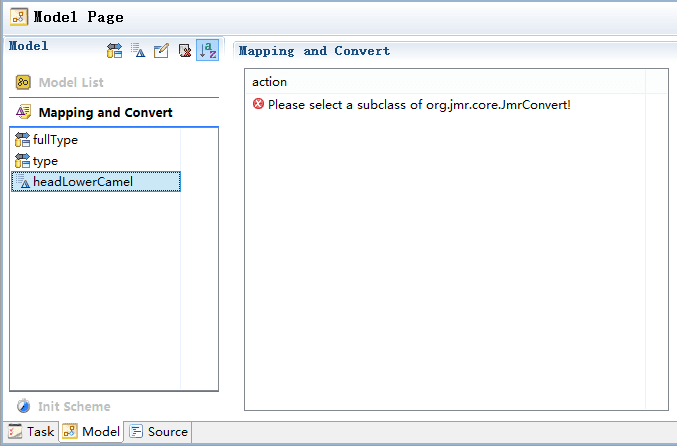

Named headLowerCamel

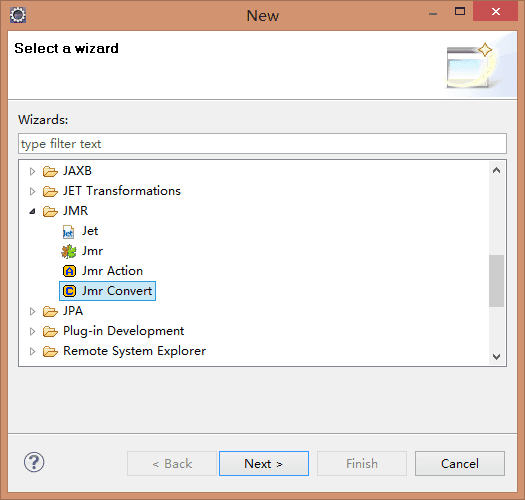

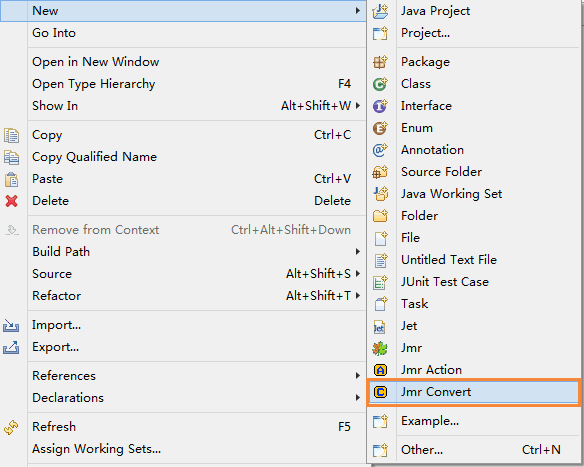

New Jmr Convert, New->Jmr Convert

Or, in Other JMR.

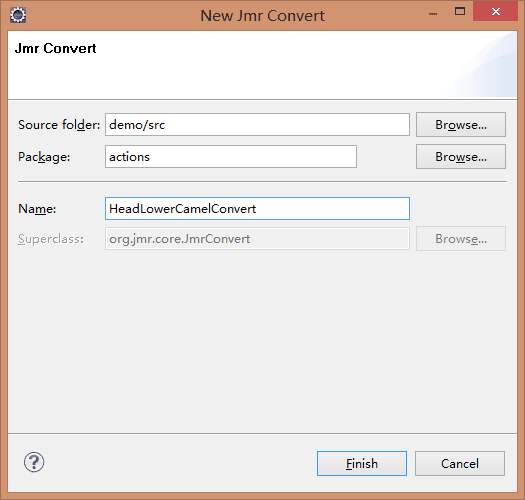

Create a new convert called HeadLowerCamelConvert

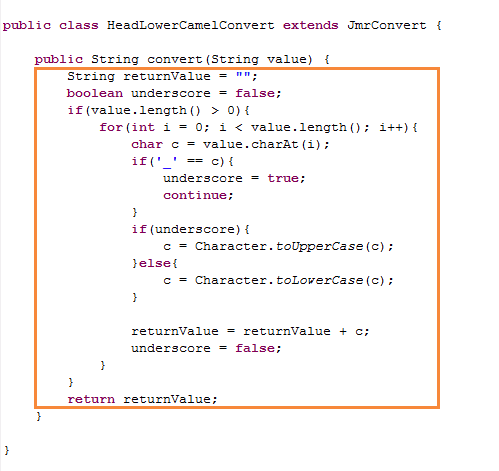

Action inherits from JmrConvert. It has a convert implementation method.

The function of HeadLowerCamelConvert:
for example: regist_time -> registTime

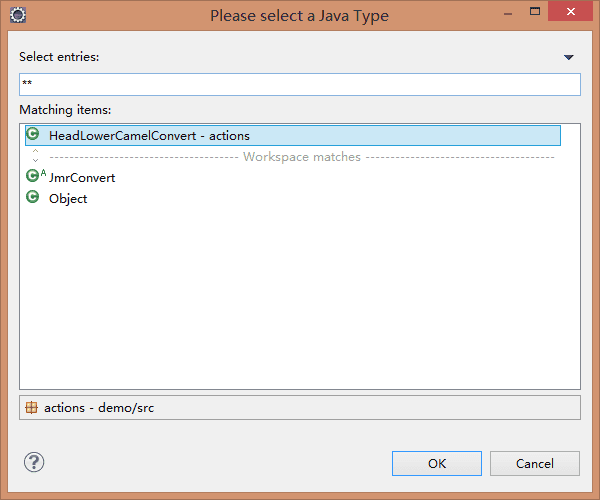

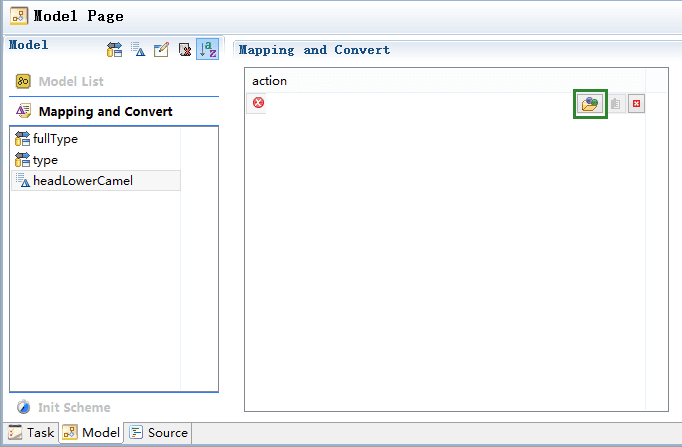

Click the right button to search for Jmr Convert.

Select HeadLowerCamelConvert.

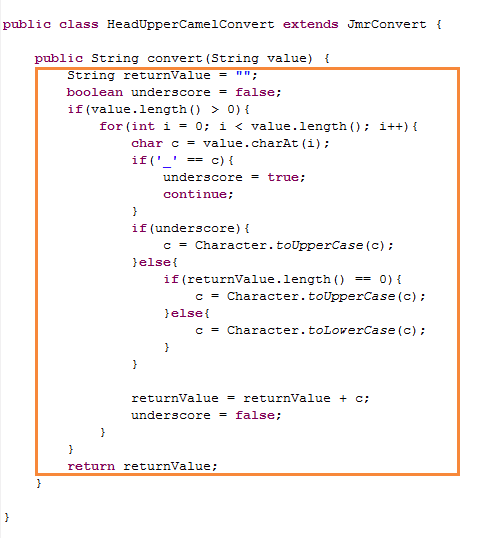

We are configuring another convert, HeadUpperCamelConvert

The function of HeadUpperCamelConvert:
for example: book_order -> BookOrder

Using convert in the model

Convert can be used on properties or fields.

Property Convert

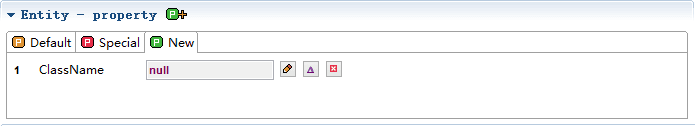

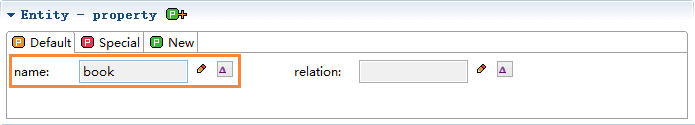

We have created a new property named ClassName, which is used as the class name of the java.

The Java class name are head upper case and camel case, we convert from the name.

Click Convert Icon

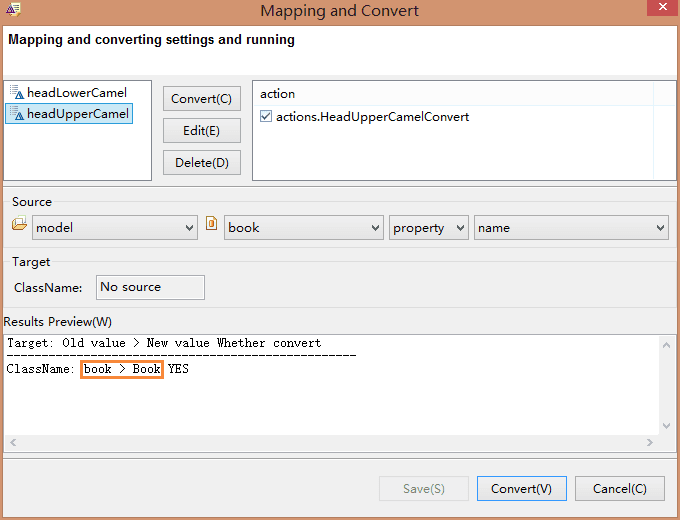

Select headUpperCanelConvert, In the Results Preview, we can see the result of the convert, converted from book to Book. Finally, click Convert.

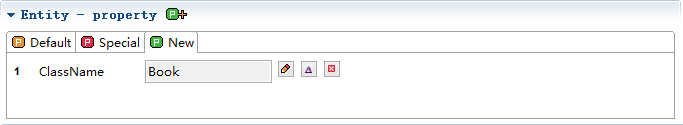

The value of ClassName is Book.

Field Convert

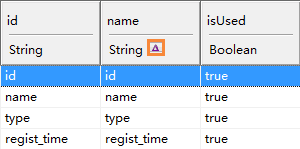

We select name, and name default to the same value as id, but can also be converted.

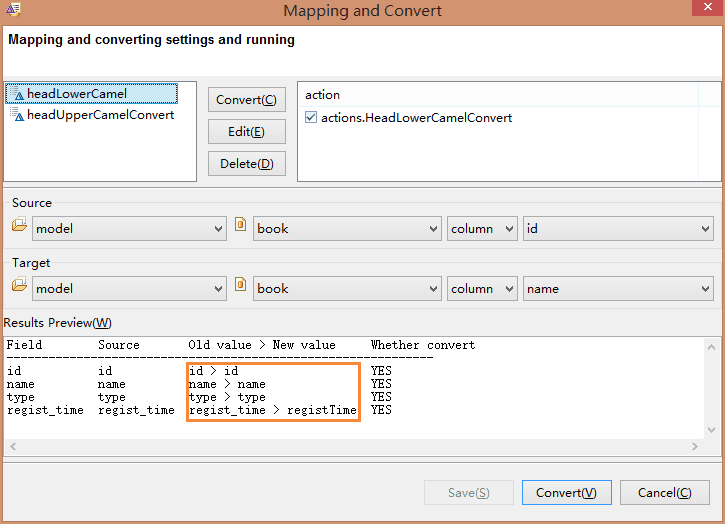

Select headLowerCanelConvert, Source is id, Target is name, In the Results Preview, we can see the result of the convert. Finally, click Convert.

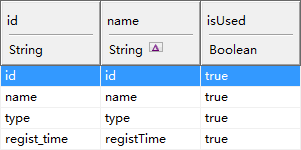

Result

Of course, you can also set convert for new fields, Click to convert.

Using convert in init scheme

You can complete the convert in the process of model transform.

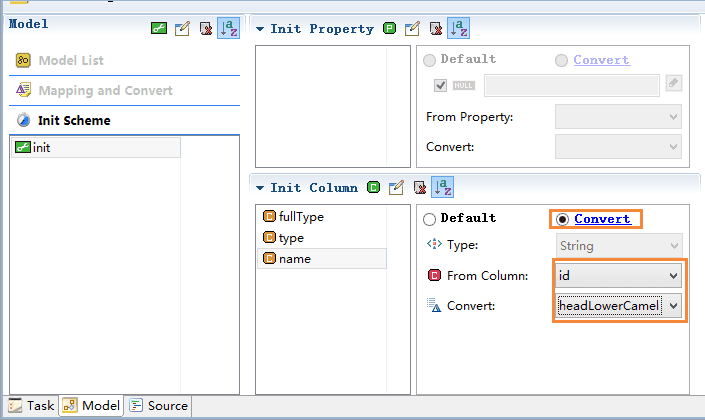

Click Model page --> Select Init Scheme, select name -->From Column id, select headLowerCamel。

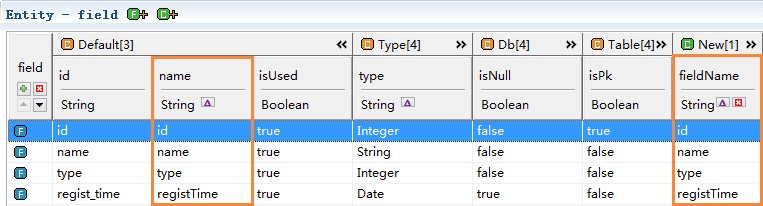

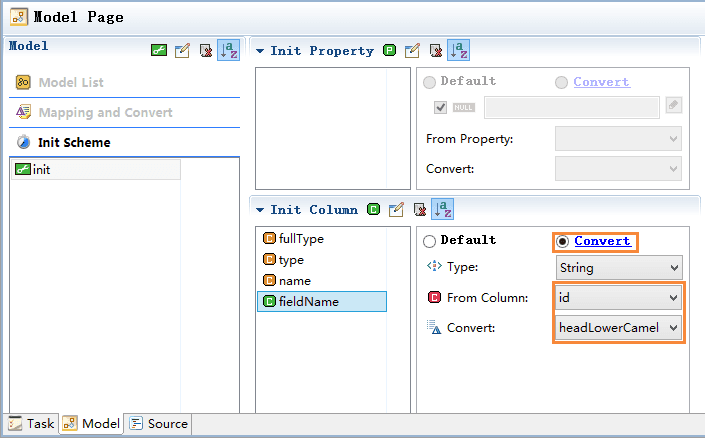

We can also set the convert in the new column, create new column fieldName --> From Column id, select headLowerCamel。

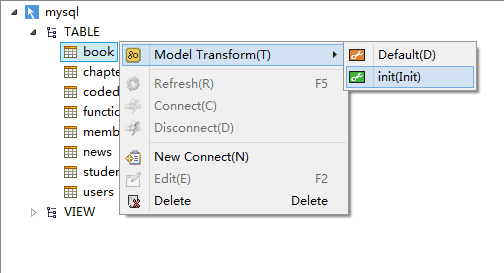

When the model transform, select init.

Result
