Init

Introduce

When model transforming, we can get the structure of the model we want with init scheme.

Catalog:

• Why use init scheme?
• How to use init scheme
  • New init scheme
  • Init scheme and transform model
  • Init Property
  • Init Column
  • Init Field

Why use init scheme?

Init scheme can help you automatically set properties, columns and fields when transform model.

For example, the database has a book table, we need to transform a model. Often we need to add some properties and columns to the model.

There is a table in the database

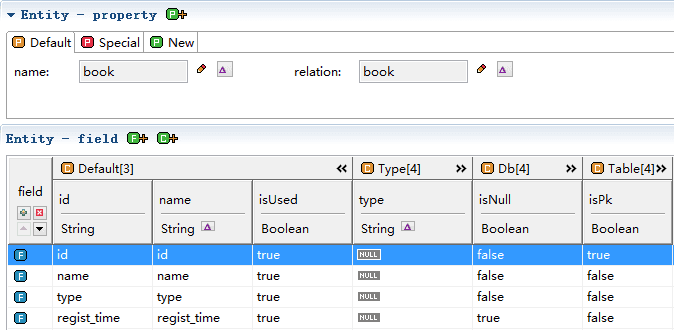

Transform by default model, Can't meet our needs.

How to use init scheme

For example, according to business requirements, we need to add and modify the model.

• Modify
  • type column: field type, such as String, Integer.
  • fullType column: field full type, such as java.lang.String, java.lang.Integer, java.util.Date.
• Add
  • title property: title.
  • fieldName column: UI field name.
  • controlType column: UI control type, such as text, select and date.
  • isQuery column: Whether field to be queried.

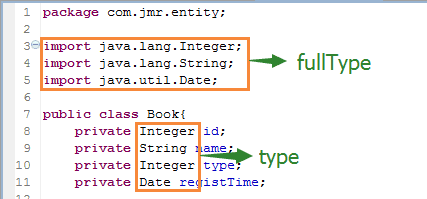

type and fullType

title、fieldName、controlType

isQuery

New init scheme

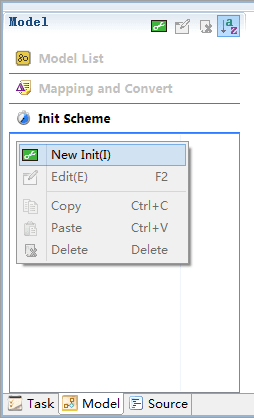

Model Page-->Init Scheme-->New Init-->Enter init name

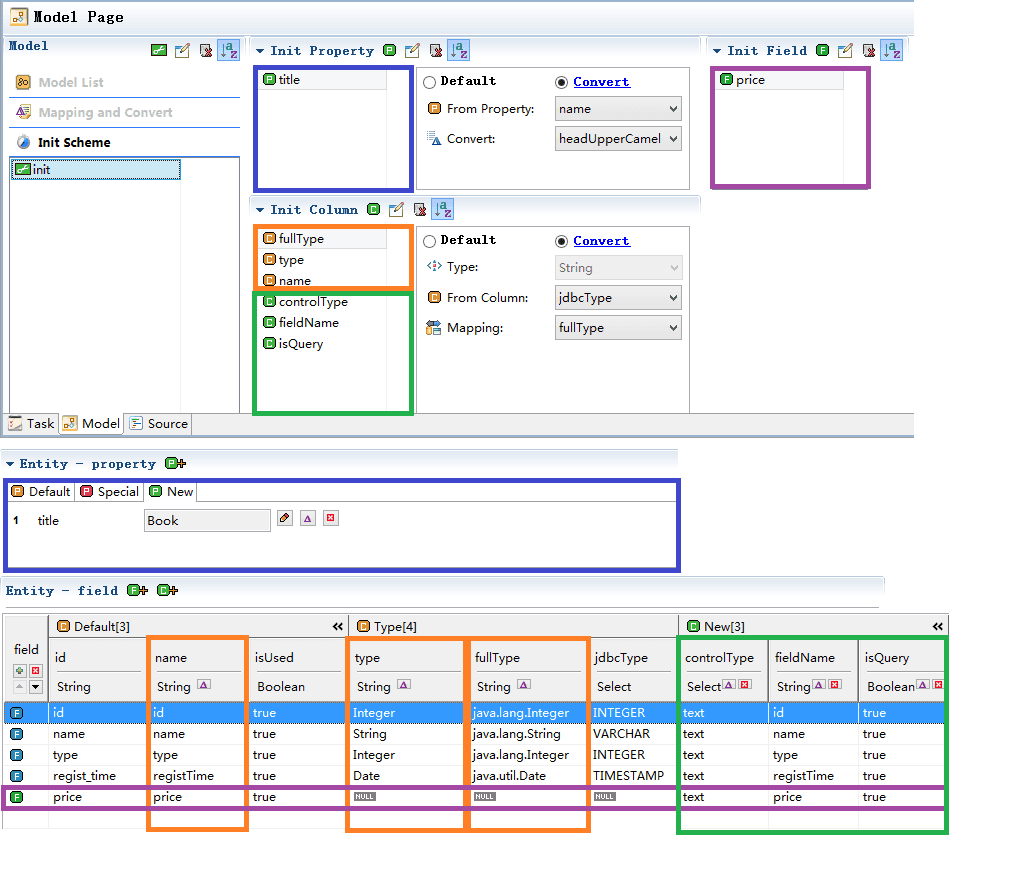

Init scheme and transform model

Init Property

There are 2 ways to set property: default and convert.

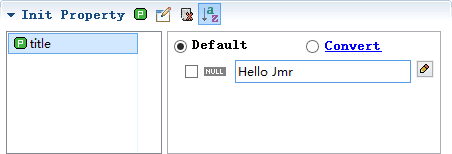

1.Default: Enter a fixed content

Double click or press enter edit

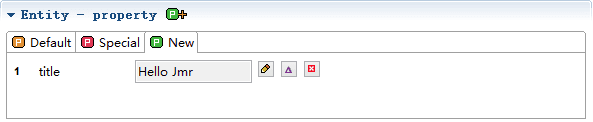

transform model

2.Convert

We can use a convert, It convert the specified property value to a new value.

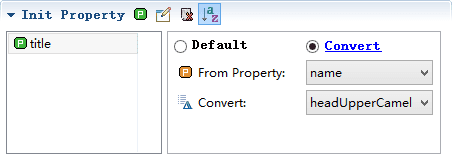

Select name, select headUpperCamel, It can convert the name to head character upper case and camel case.

For example: book_id --> BookId

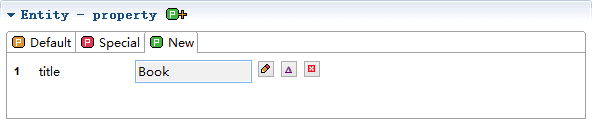

We are in the database table named book, after transform model, it will create a new property title, it's value Book.

More about the mapping and converter: Mapping and Converter

Init Column

There are 2 kinds:

• Existing column init
• New column init

Existing column init

Including name, type, fullType:

• name: Field name, which corresponds to the field name of the class.
• type: Field type, default is null, can be modified. such as Stirng, int, Integer.
• fullType: Field full type, default is null, such as java.lang.String、java.util.Date.

There are also two ways: default and convert.

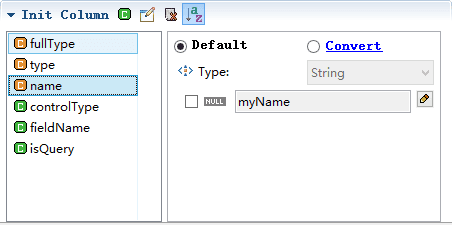

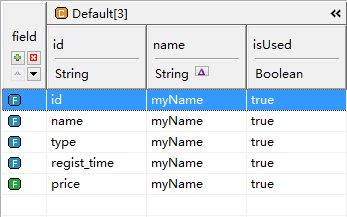

The default value is filled with a fixed value. Fill in here myName.

The same value is generated for each field in the same column.

But in most cases, name, type, fullType these three field are converted by other columns

Our conversion scheme:

• name: id --> converter headLowerCamel, the value of the id is the same as the field of the table, which is converted into a camel case, such as regist_time to registTime.
• type: jdbcType --> Mapping type, jdbcType is the type of jdbc standard, we mapping to the type by jdbcType.
• fullType: jdbcType --> Mapping fullType, we also mapping to the type by jdbcType.

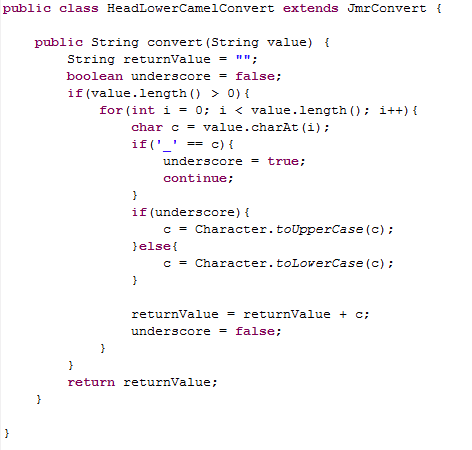

Converter headLowerCamel, lower case and camel case.

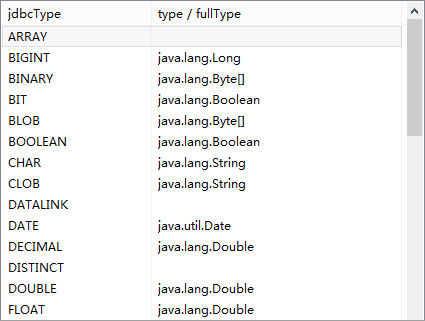

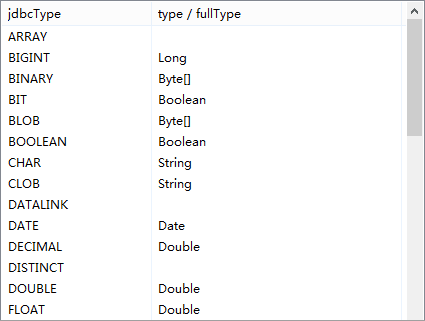

Mapping type, from jdbcType to the development language type.

Mapping full type, from jdbcType to the development language fullType.

More about headLowerCamel、mapping type and fullType：Mapping and Convert

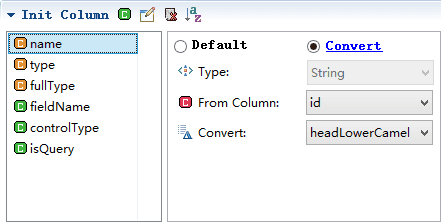

name, select the Convert from column is id, convert is headLowerCamel.

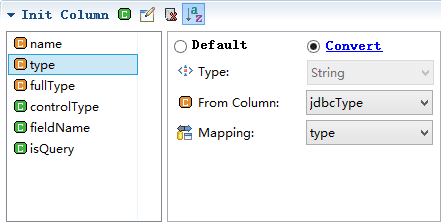

Type, select the default from the column jdbcType, using the mapping type.

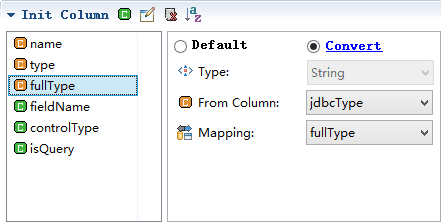

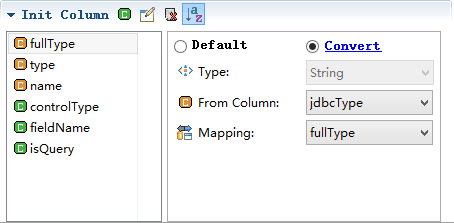

FullType, select the default from the column jdbcType, using the mapping fullType.

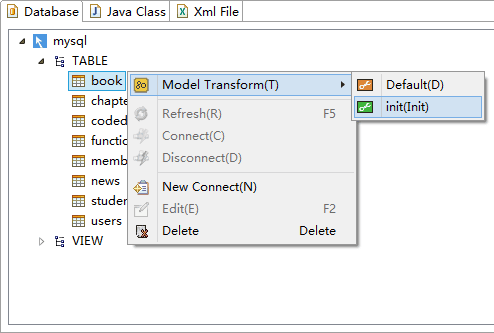

Transform model, select the init.

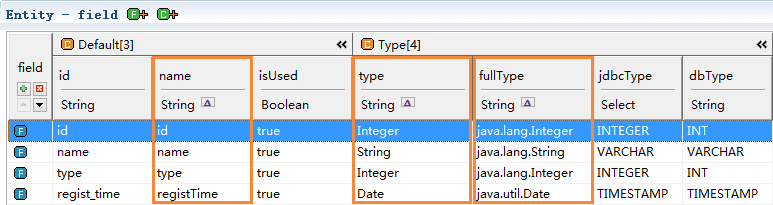

Transform result

Init Column

Similar to existing column,

Our conversion scheme:

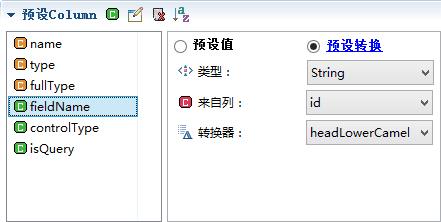

• fieldName: id --> converter headLowerCamel, the value of the id is the same as the field of the table, which is converted into a camel case, such as regist_time to registTime.

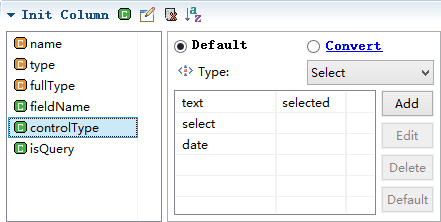

• controlType: Set the option value, text, select, date.

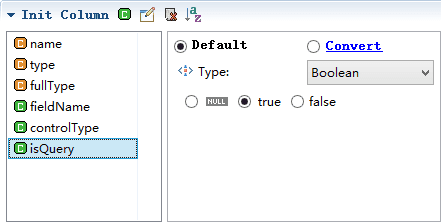

• isQuery: Set the Boolean value, the default value is true.

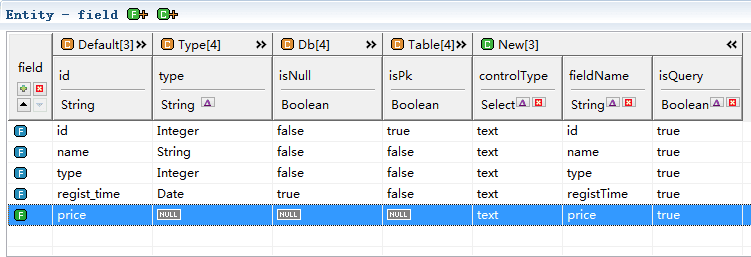

Result

Click any grid can edit, you can find,
controlType columns can choose three options and null;
IsQuery columns can choose true, false and null.

Init Field

Create a new field price

Create new field
