Model Structure - Xml

Catalog:

xml structure
xml usage

Example:

demo/model/model.jmr.xml - model/xml/xml

xml structure

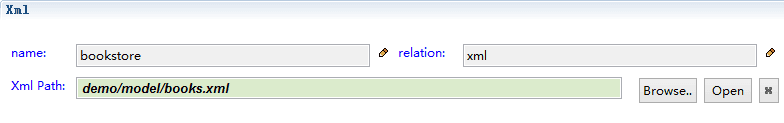

xml model structure

name: From the xml file, consistent with file name, can be modified.
relation: The relation between the models in the group can be modified.
Xml Path: Xml file path, project path, can be selected in the browser.

The xml model simply records the path to the xml file and does not save the xml content as a separate data. When the content of the xml file changes, the data will also be changed.

xml usage

In the template, use <xml> tag get model.

<xml> has 2 attributes:

var: Set the new variable name to the xml model in the template.
relation: Model relation, can be defined.

This is a xml file

We transform it to model

(How to transform the xml model, please read: transform xml model)

In the template, we select this model to find the xml model

If the model group is selected, the xml tag need to specify relation

If the model is selected, the xml tag does not need to specify relation

About the usage of xml tag, please read: xml tag

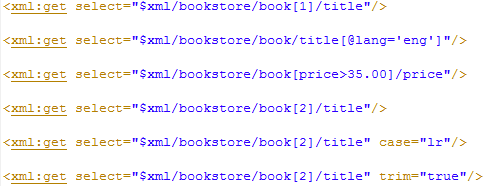

We use select to output some elements, the format must begin with $.

Template

Result

Other tag to be used:
